Visualizations¶

Preparation¶

Install the required packages

pip install ONTraC[analysis]
# or
pip install seaborn

Load modules

import numpy as np
import pandas as pd

import matplotlib as mpl

mpl.rcParams['pdf.fonttype'] = 42
mpl.rcParams['ps.fonttype'] = 42
mpl.rcParams['font.family'] = 'Arial'
import matplotlib.pyplot as plt
import seaborn as sns

from ONTraC.analysis.data import AnaData

Plotting preparation

from optparse import Values

options = Values()
options.NN_dir = 'stereo_seq_NN'
options.GNN_dir = 'stereo_seq_GNN'
options.NT_dir = 'stereo_seq_NT'
options.log = 'stereo_seq_final.log'
options.reverse = True  # Set it to False if you don't want reverse NT score
options.output = None  # We save the output figure by our self here
ana_data = AnaData(options)

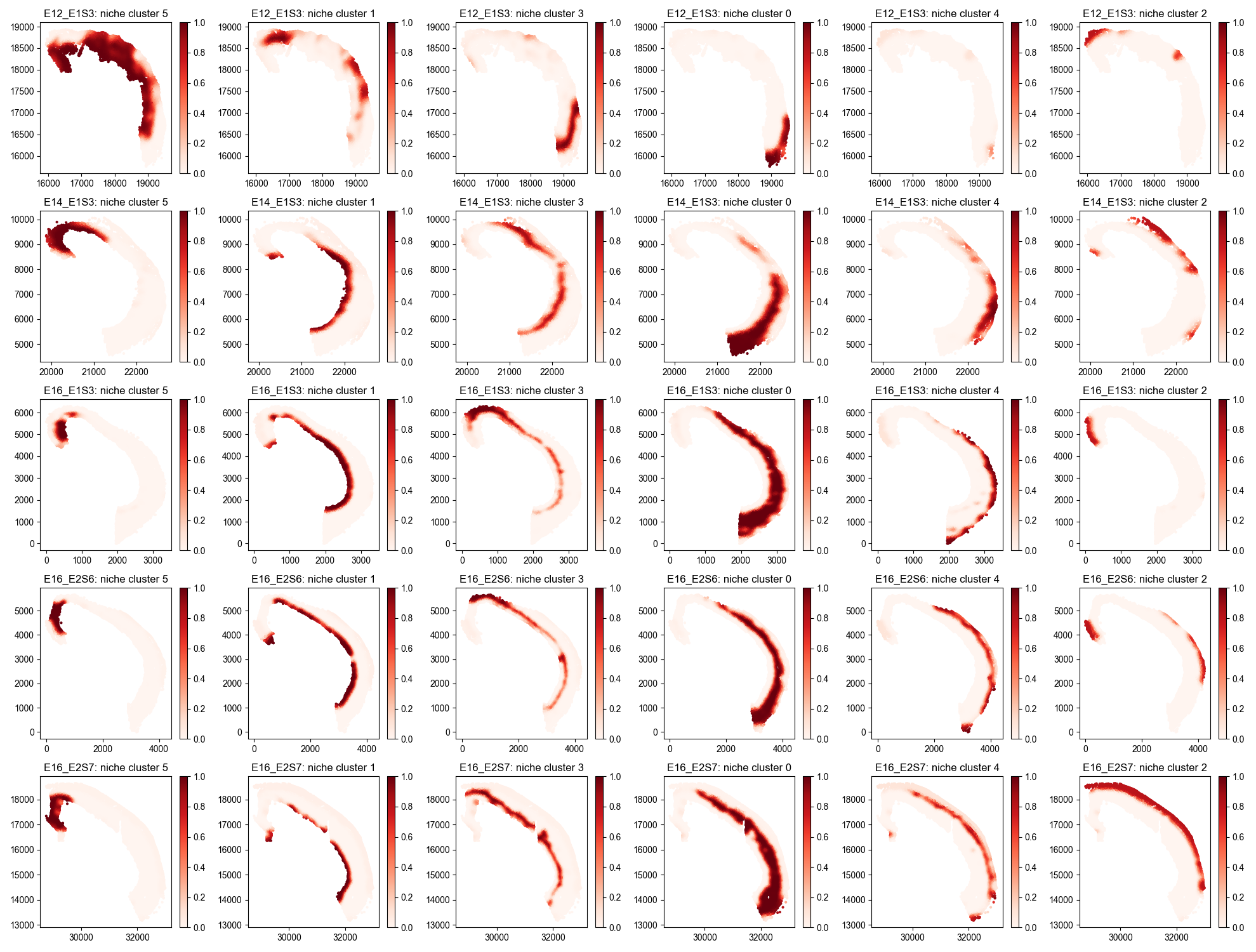

Spatial niche cluster loadings distribution¶

from ONTraC.analysis.niche_cluster import plot_niche_cluster_loadings_dataset_from_anadata

fig, axes = plot_niche_cluster_loadings_dataset_from_anadata(ana_data=ana_data)
fig.savefig('figures/Spatial_niche_clustering_loadings.png', dpi=100)

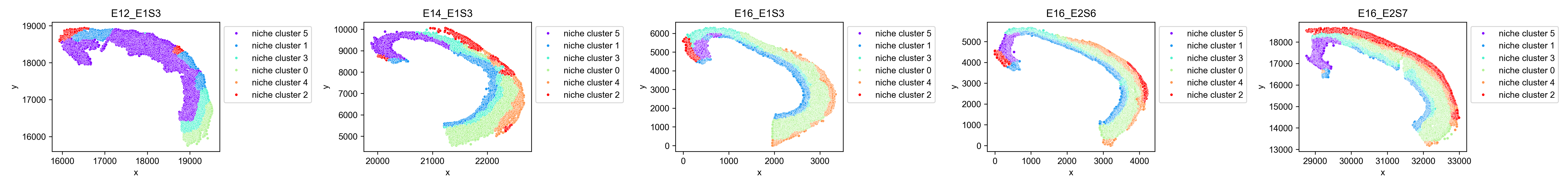

Spatial maximum niche cluster distribution¶

from ONTraC.analysis.niche_cluster import plot_max_niche_cluster_dataset_from_anadata

fig, axes = plot_max_niche_cluster_dataset_from_anadata(ana_data=ana_data)
fig.savefig('figures/Spatial_max_niche_cluster.png', dpi=300)

Niche cluster connectivity¶

from ONTraC.analysis.niche_cluster import plot_niche_cluster_connectivity_from_anadata

fig, axes = plot_niche_cluster_connectivity_from_anadata(ana_data=ana_data)
fig.savefig('figures/Niche_cluster_connectivity.png', dpi=300)

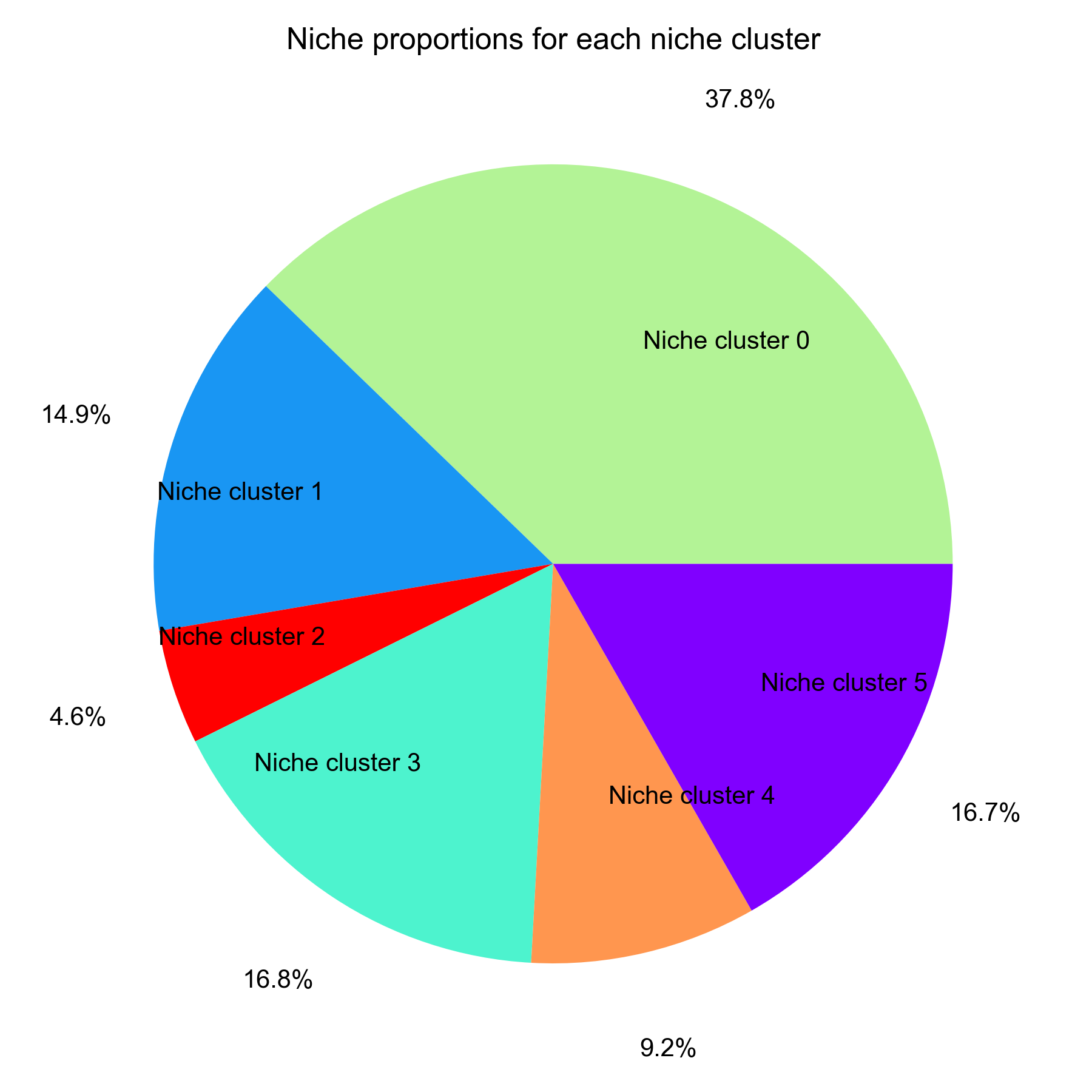

Niche cluster proportion¶

from ONTraC.analysis.niche_cluster import plot_cluster_proportion_from_anadata

fig, ax = plot_cluster_proportion_from_anadata(ana_data=ana_data)
fig.savefig('figures/Niche_cluster_proportions.png', dpi=300)

Cell type distribution in each niche cluster¶

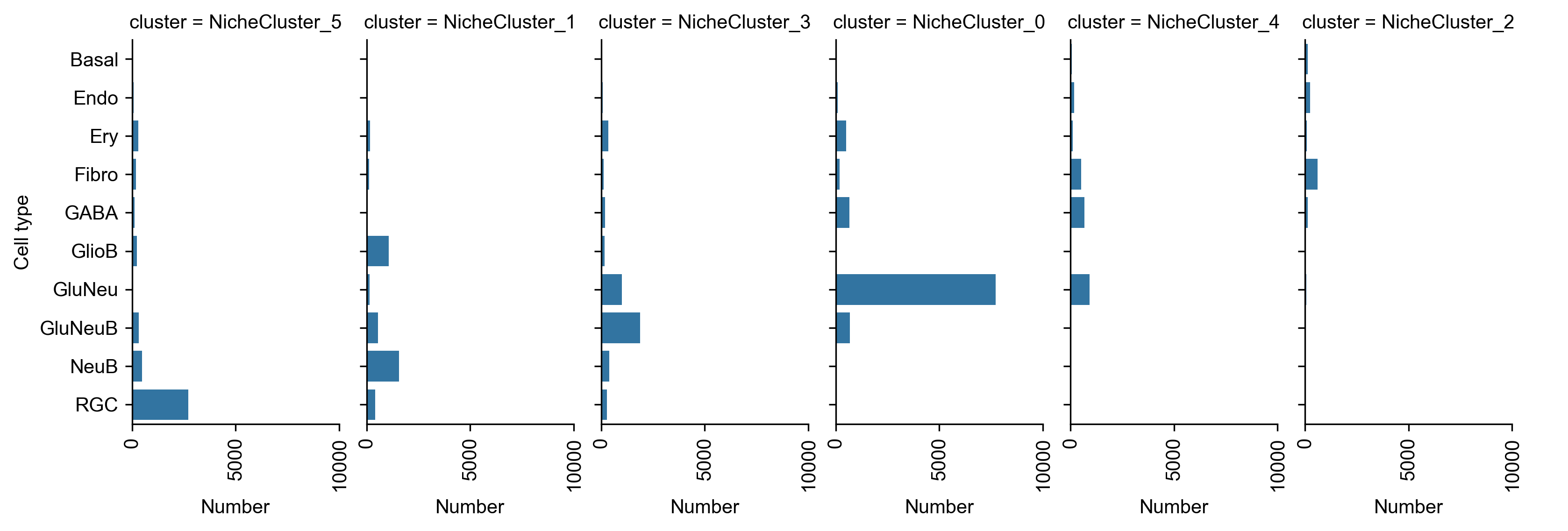

Number of cells of each cell type cells in each niche cluster

from ONTraC.analysis.cell_type import plot_cell_type_loading_in_niche_clusters_from_anadata

g = plot_cell_type_loading_in_niche_clusters_from_anadata(ana_data=ana_data)
g.savefig('figures/cell_type_loading_in_niche_clusters.png', dpi=300)

Cell type proportions in each cluster normalized by total loadings of each niche cluster

from ONTraC.analysis.cell_type import plot_cell_type_dis_in_niche_clusters_from_anadata

fig, ax = plot_cell_type_dis_in_niche_clusters_from_anadata(ana_data=ana_data)
fig.savefig('figures/cell_type_dis_in_niche_clusters.png', dpi=300)

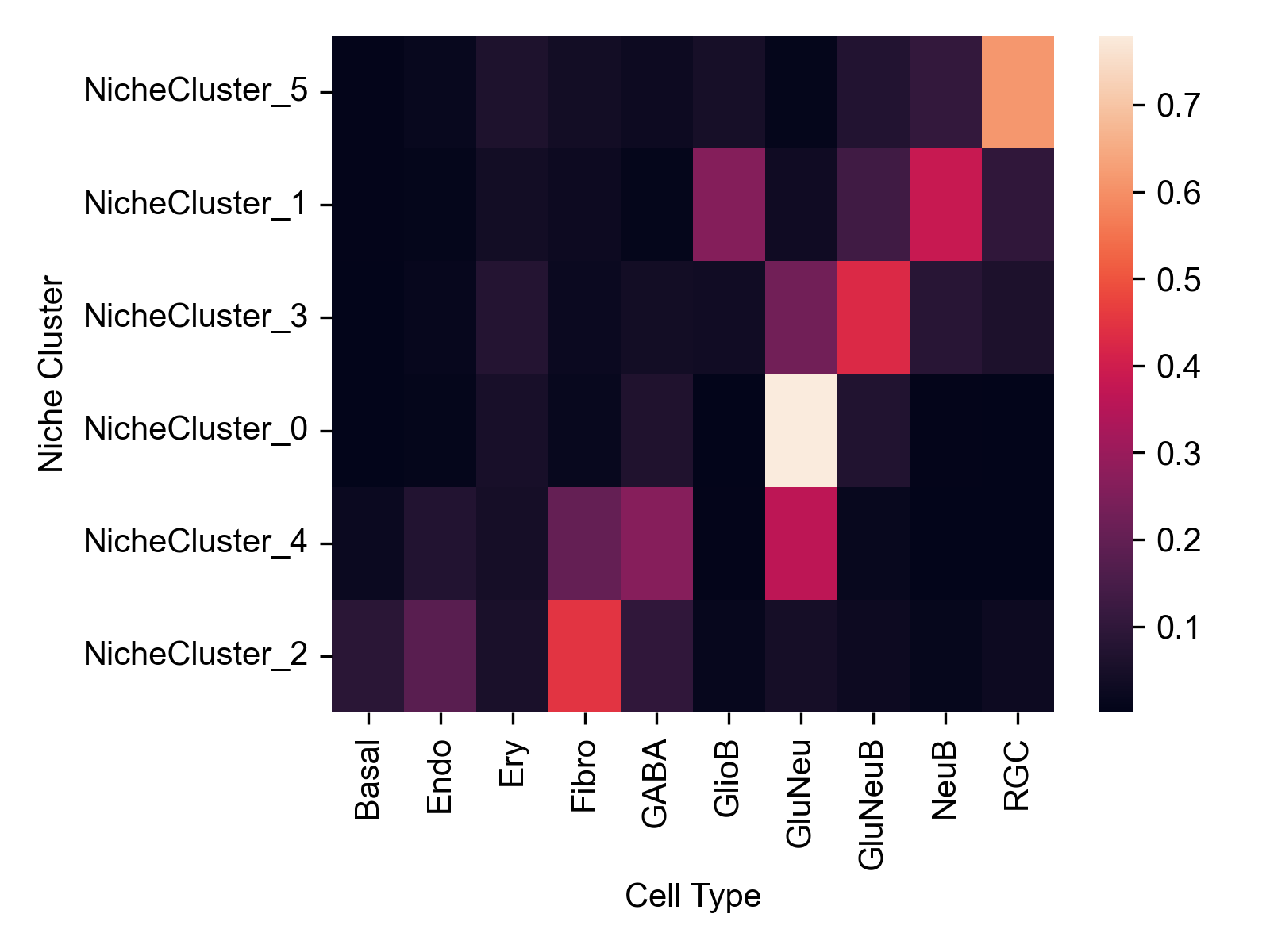

Heatmap with cell type distributions in niche cluster

Cell type proportions in each cluster normalized by the number of each cell type

from ONTraC.analysis.cell_type import plot_cell_type_across_niche_cluster_from_anadata

fig, ax = plot_cell_type_across_niche_cluster_from_anadata(ana_data=ana_data)
fig.savefig('figures/cell_type_dis_across_niche_clusters.png', dpi=300)

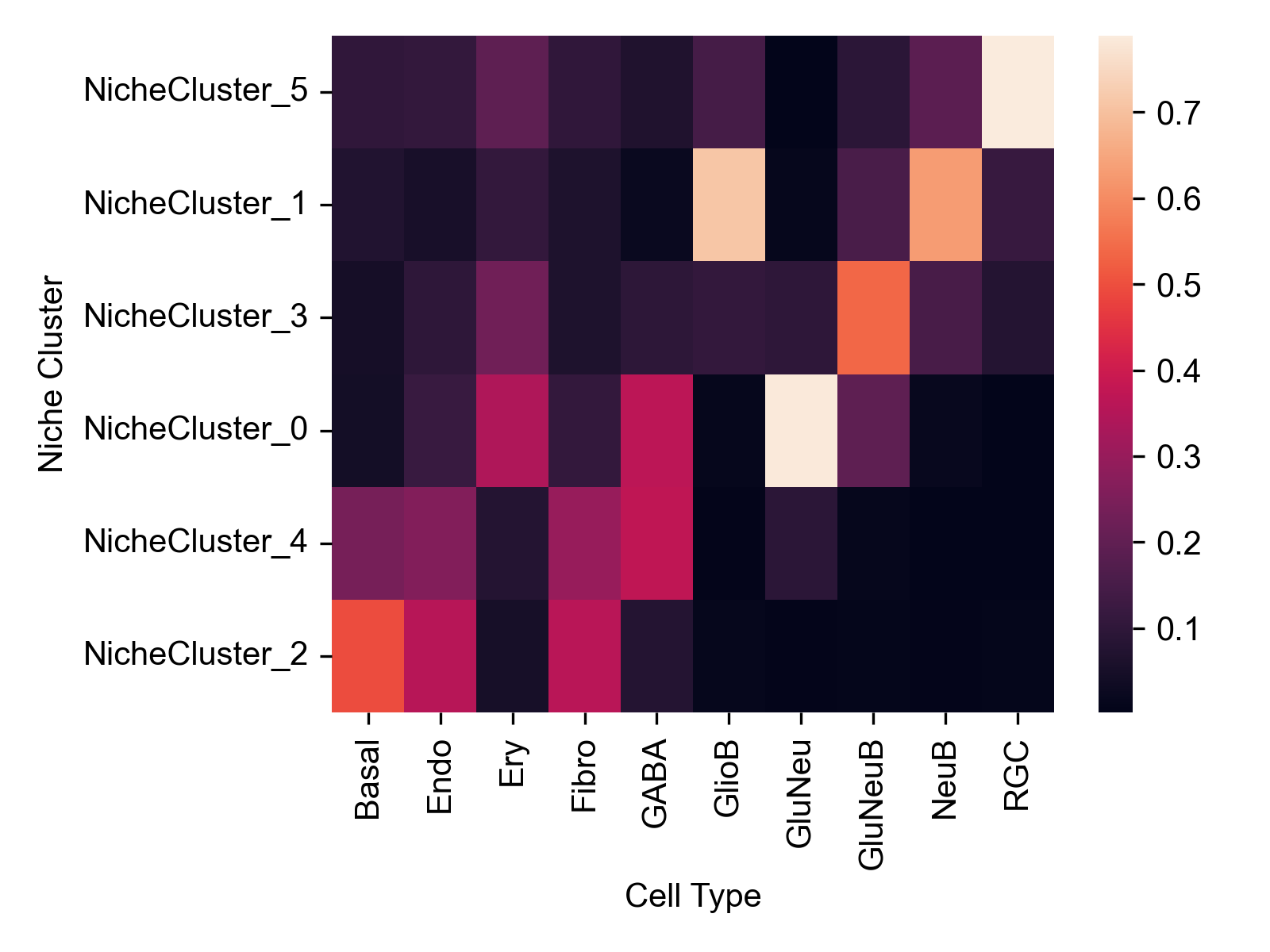

Heatmap with cell type distributions across niche clusters

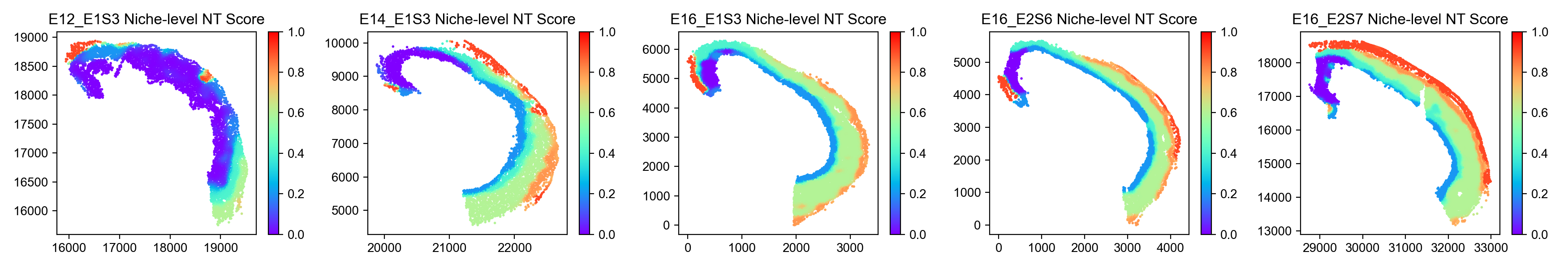

Spatial niche-level NT score distribution¶

from ONTraC.analysis.spatial import plot_niche_NT_score_dataset_from_anadata

fig, ax = plot_niche_NT_score_dataset_from_anadata(ana_data=ana_data)
fig.savefig('figures/niche_NT_score.png', dpi=200)

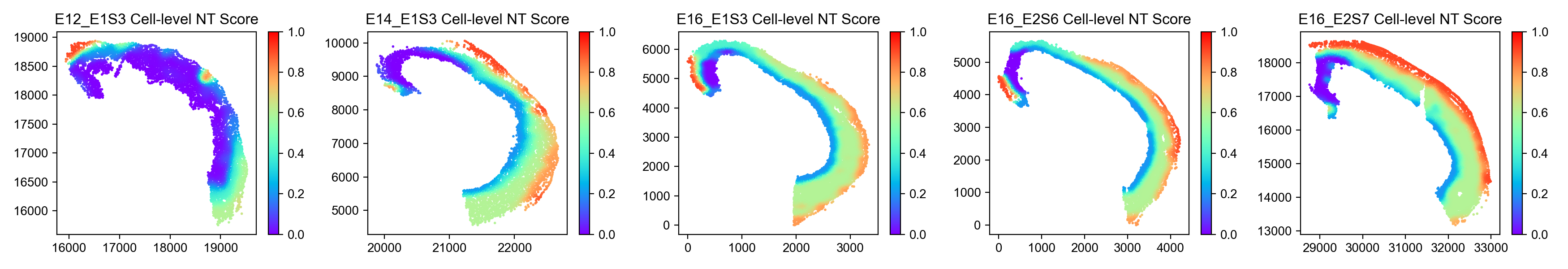

Spatial cell-level NT score distribution¶

from ONTraC.analysis.spatial import plot_cell_NT_score_dataset_from_anadata

fig, ax = plot_cell_NT_score_dataset_from_anadata(ana_data=ana_data)
fig.savefig('figures/cell_NT_score.png', dpi=200)

Cell-level NT score distribution for each cell type¶

from ONTraC.analysis.cell_type import plot_violin_cell_type_along_NT_score_from_anadata

fig, ax = plot_violin_cell_type_along_NT_score_from_anadata(ana_data=ana_data,
                                                           order=['RGC', 'GlioB', 'NeuB', 'GluNeuB', 'GluNeu', 'GABA', 'Ery', 'Endo', 'Fibro', 'Basal'],  # change based on your own dataset or remove this line
                                                           )

fig.savefig('figures/cell_type_along_NT_score_violin.png', dpi=300)

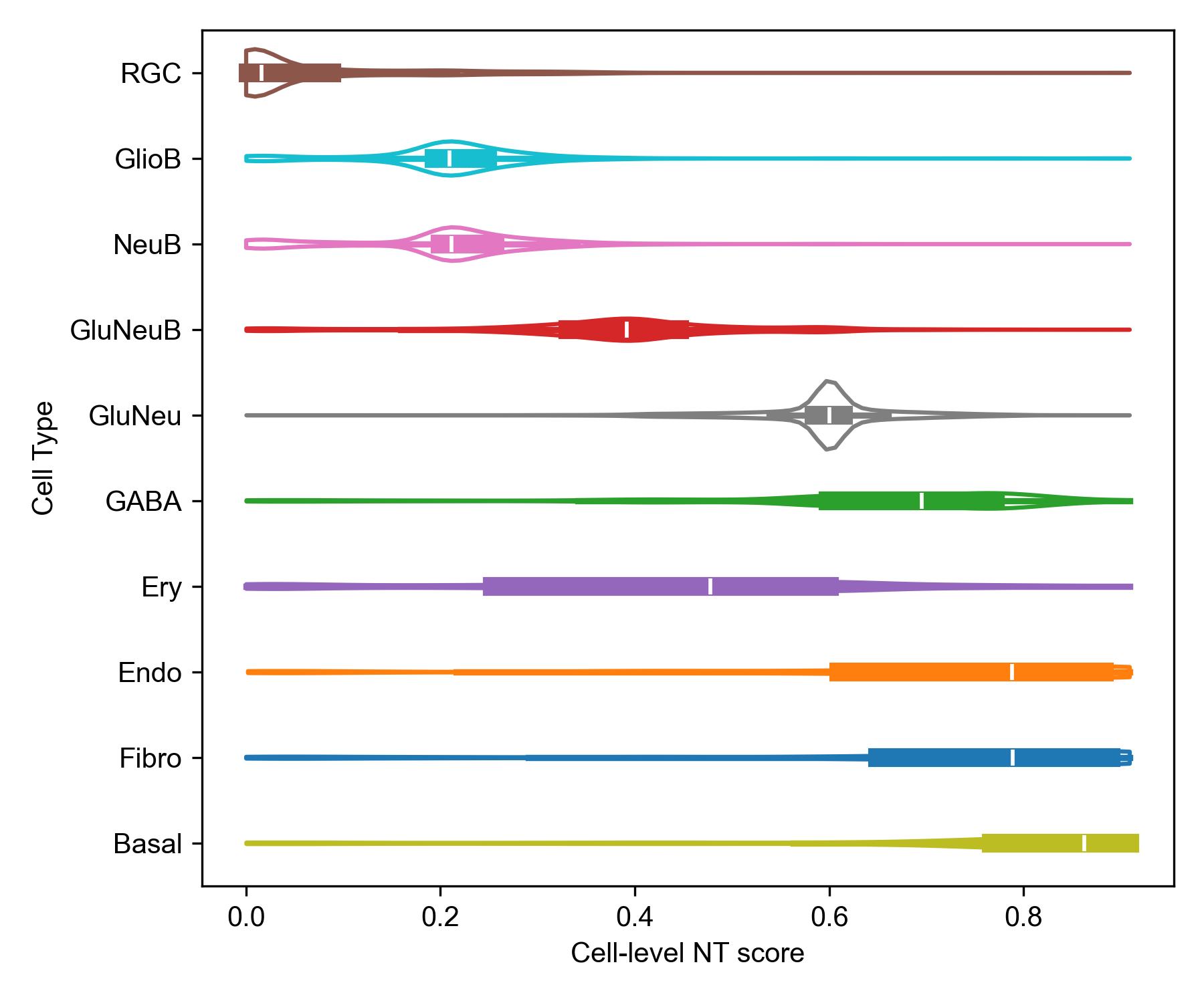

Violin plot with NT score distributions per cell type
